Synchron Percussion I


Welcome to the Vienna Symphonic Library’s series of Synchron Instruments! The instruments were recorded at Stage A, the main hall of Vienna’s revitalized Synchron Stage Vienna. The recordings were executed using an expansive, phase-controlled multi-microphone set-up, capturing string effects played in a scoring stage with exceptional acoustics, now ready to be used in your studio. This document will provide you with the information you need to use the Library with our Vienna Synchron Player.

Standard and Extended Library

All the instruments were recorded using 12 microphones, subdivided into 7 sections. The Standard Library includes 4 of these sections, allowing you to integrate instruments recorded with a stereo Decca tree into your projects using our new Synchron Player software. Adding the Extended Library and thus getting the Full Library expands your possibilities to 5.1 surround and Auro 3D 9.1.

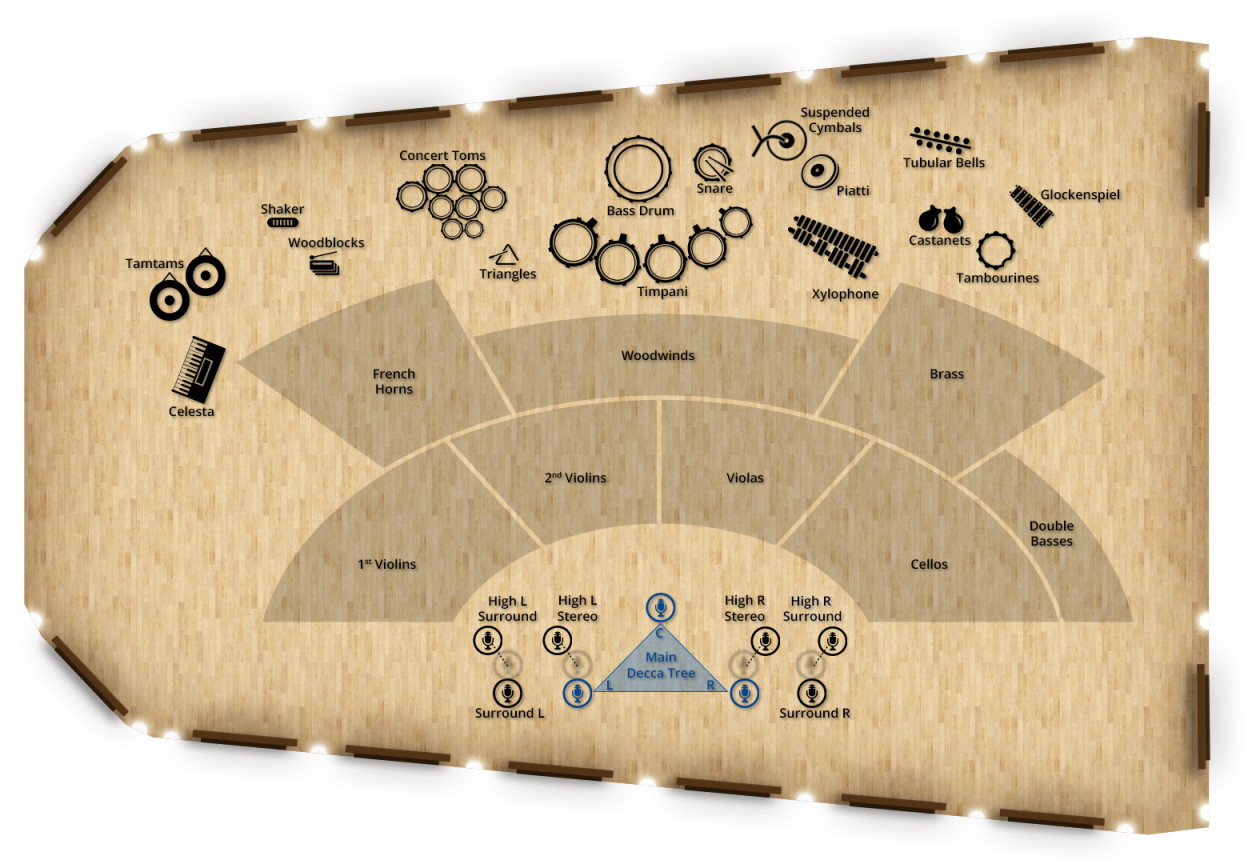

Microphone positions

Standard Library

  1. Close Mic - Mono
  2. Mid Layer Mic - Stereo (L/R)
  3. Main/Room Mic - Decca Tree Stereo (L/R)
  4. Main/Room Mic - Decca Tree Mono (Center)

Extended Library

  1. Main Surround - Stereo (L/R)
  2. High Stereo (3D) - Stereo (L/R)
  3. High Surround (3D) - Stereo (L/R)

The instrument Presets also include different mixer presets. By default the classic room mixes are loaded which include the Standard Library microphone positions. These are balanced in the stereo field to represent the respective instrument’s position in the Synchron Stage set-up.

Immersive Sound and Auro 3D

Auro 3D is an immersive audio technology that allows for three-dimensional sound perception. The Belgian company Auro Technologies developed this technology based on a special speaker configuration, adding four additional speakers to a 5.1 surround configuration. These speakers (so-called "Heights'') are situated above the front and surround speakers and generate acoustic reflections that are perceived naturally due to the fact that sounds originate from around as well as from above the listener. Thanks to the comprehensive selection of discrete audio channels with the Full Library of Synchron Percussion I you may mix your instruments in Auro 3D as well as in Dolby Atmos.

About Pitch

For designating pitch, the Vienna Symphonic Library uses International Pitch Notation (IPN), which was agreed upon internationally under the auspices of the Acoustical Society of America. In this system the international standard of A=440 Hz is called A4 and middle C is C4. All pitches are written as capital letters, their respective octave being indicated by a number next to it. The lowest C on the piano is C1 (the A below that is A0), etc.

The Synchron Player software allows you to set middle C to C3, C4, or C5 according to your preference. Selecting another setting than C4 will of course also change the play ranges and keyswitches accordingly.

Walkthrough Videos

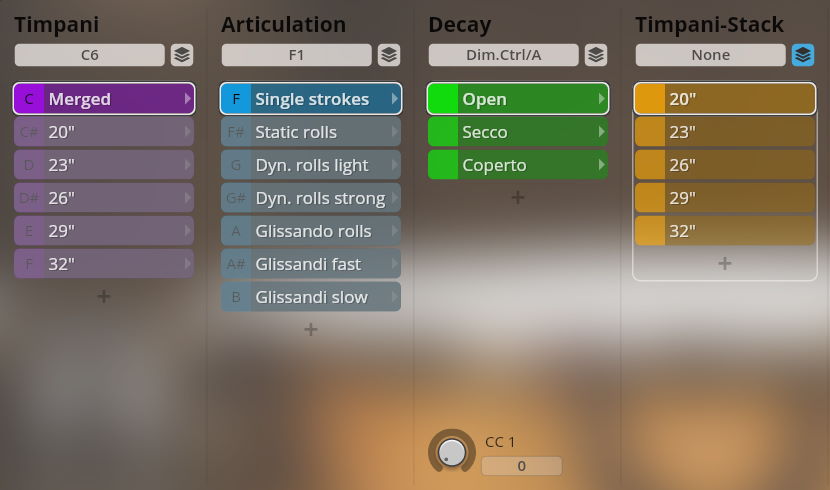

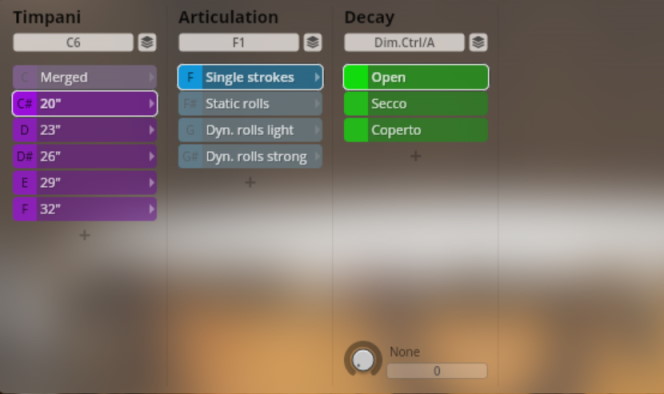

01 SY Timpani

01 Timpani - Adams - Medium mallets

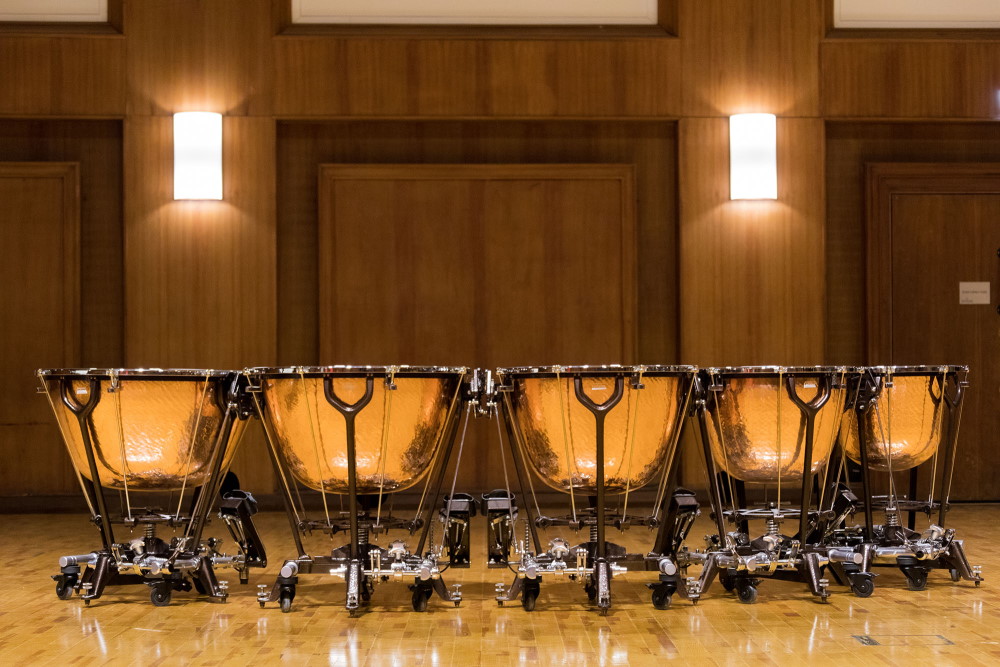

Five Adams Symphonic timpani of different sizes, plus a merged instrument comprising all of them.

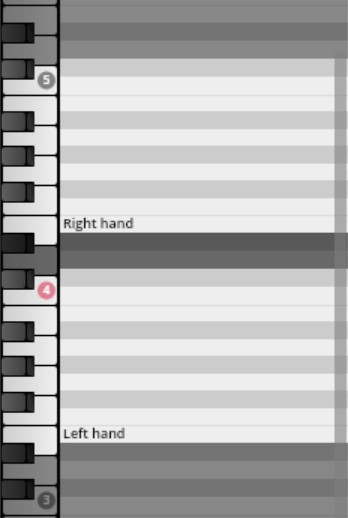

Single strokes
  • Play range: C2-B5
  • Mapping
    • C2-B3 left hand
    • C4-B5 right hand

Use Dim.Ctrl/A (CC1) to switch between open, secco, and coperto.

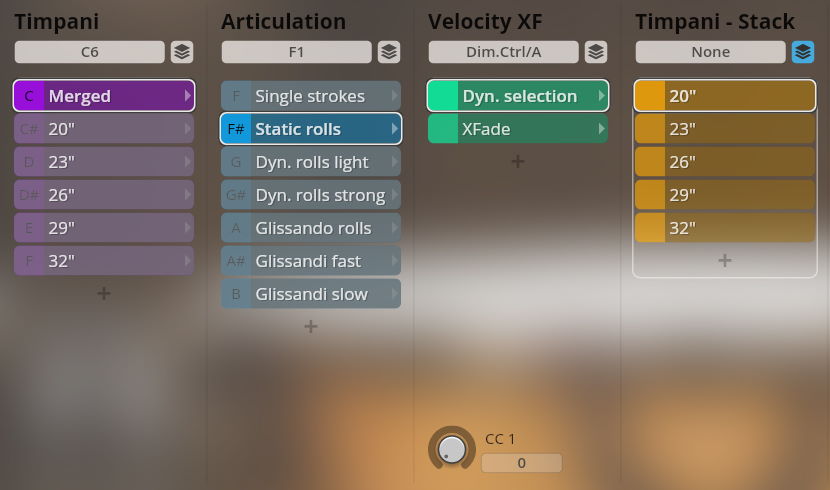

Static rolls
  • Play range: C2-C#4

Use Dim.Ctrl/A (CC1) to switch between dynamic selection and velocity crossfading.

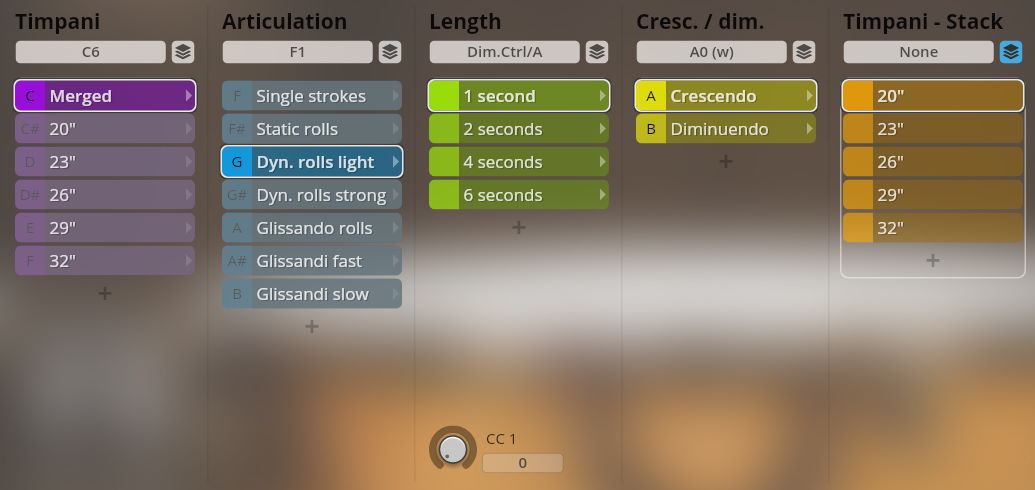

Dynamic rolls light / strong
  • Play range: C2-C#4
  • Roll duration: light 1/2/4/6 sec., strong 2/4/6/8 sec.

Use Dim.Ctrl/A (CC1) to change roll duration, and keyswitches (A0/B0) to switch between crescendo and diminuendo.

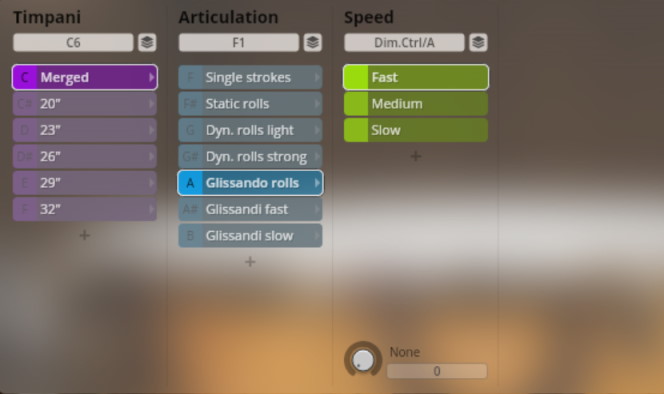

Glissando rolls
  • Play range: C2-C#4

Use Dim.Ctrl/A (CC1) to switch between fast, medium, and slow rolls.

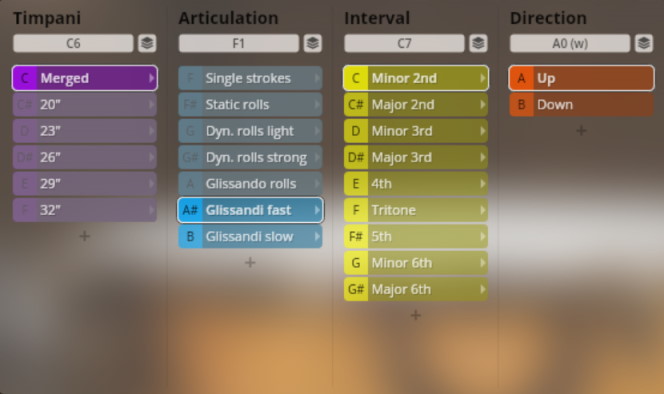

Glissandos slow / fast
  • Play range: C2-C#4

Use keyswitches C7-G#7 to change interval, and A0/B0 to switch between up and down glissandos.

Single, 20" / 23" / 26" / 29" / 30"

The layout of the individual instruments is basically the same as that of the merged timpani, without the glissando articulations. Naturally, the play ranges of the single timpani articulations also differ from the merged ones.

  • Mapping: according to drum, e.g.
    • 20" E3-C#4 left hand, E4-C#5 right hand
    • 32" C2-A2 left hand, C3-A3 right hand

02 SY Drums - Toms

01 Snare drum - Kolberg Rosewood

A Kolberg Rosewood snare drum played with sticks, rods, brushes, and mallets.

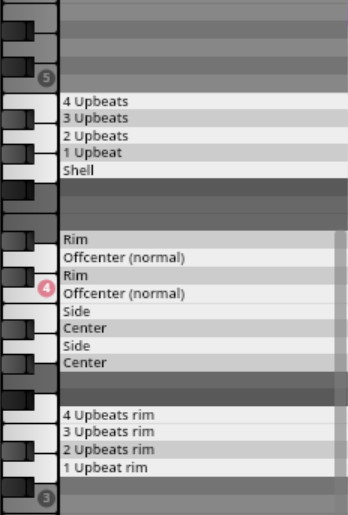

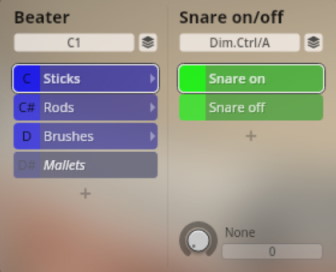

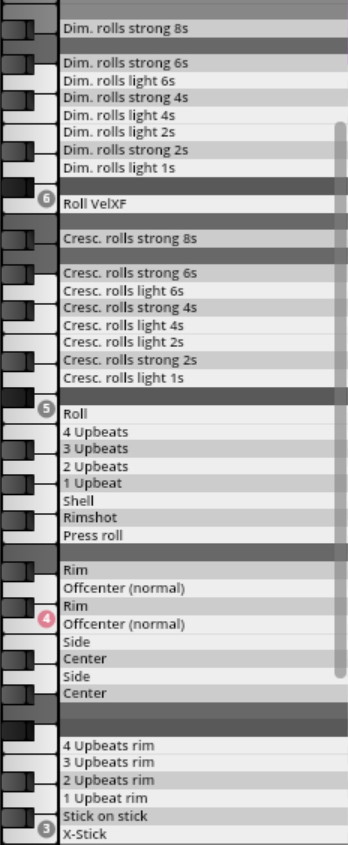

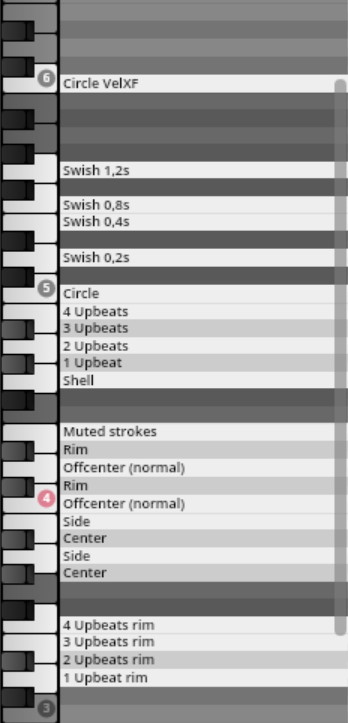

Sticks / rods / brushes

Use Dim.Ctrl/A (CC1) to play with or without snare.

  • Play range: C3-A#6

  • Play range: D3-B4

  • Play range: D3-C6


  • Play range: C4-D#4

02 Bass drum - Kolberg 36

A Kolberg 36 bass drum played with soft, medium, and hard beaters, soft and hard brushes, and for special effects.

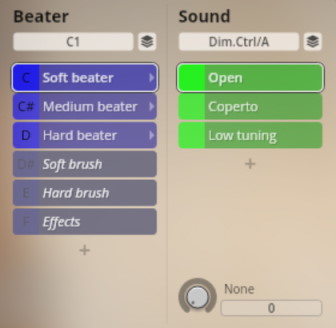

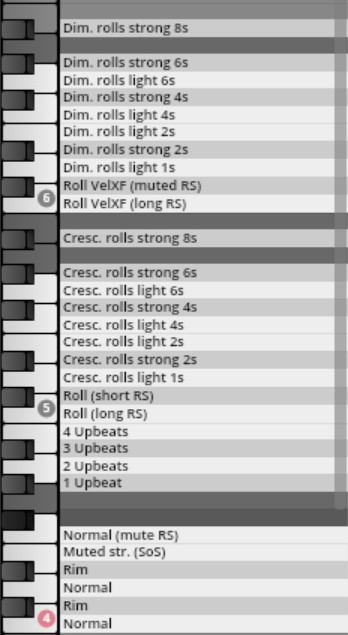

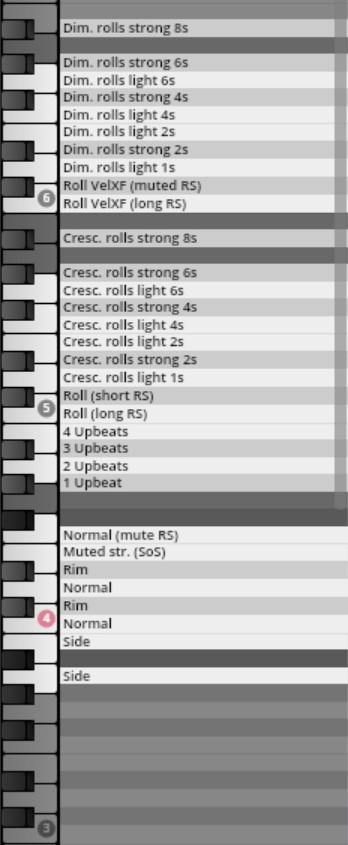

Soft / medium / hard beater

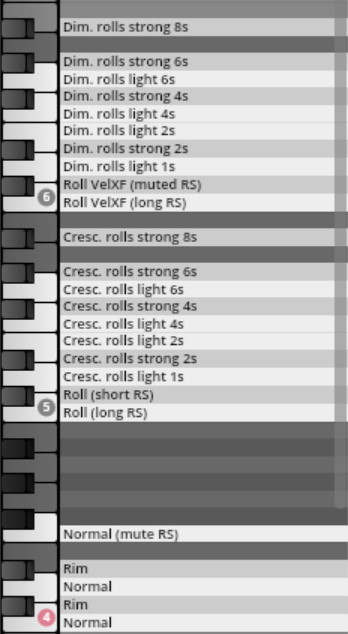

Use Dim.Ctrl/A (CC1) to change between open and coperto articulations, or to switch to low tuning.

  • Play range: A3-A#6

  • Play range: C4-A#6

  • Play range: C4-A#6

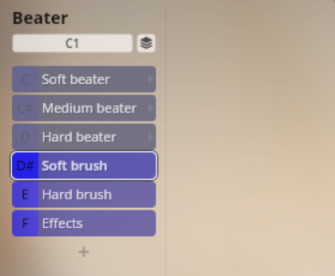

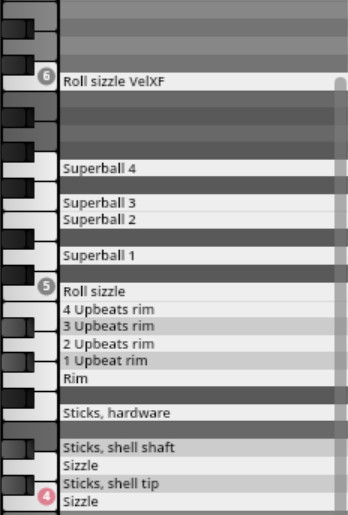

Brushes soft / hard, effects

There are no further options to these articulations.

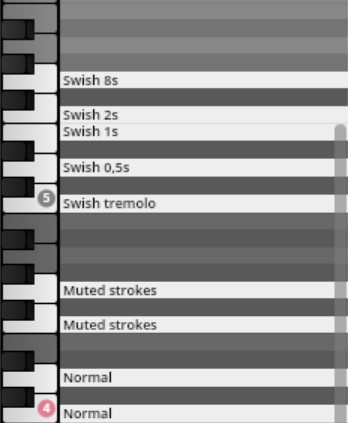

Soft brushes
  • Play range: C4-G5

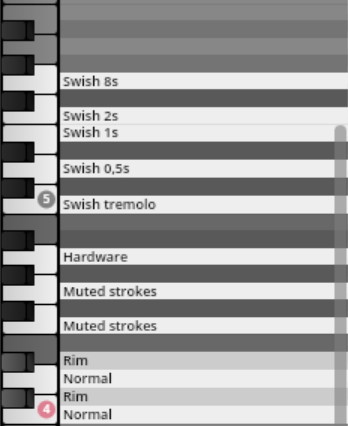

Hard brushes
  • Play range: C4-G5

  • Play range: C4-C6

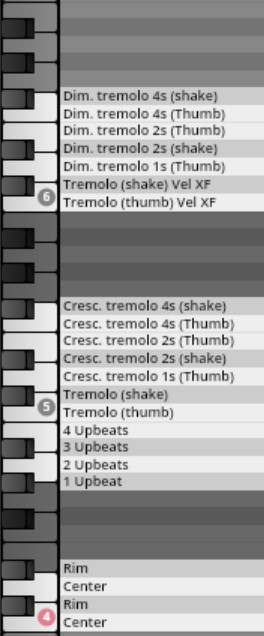

03 Tambourines

Tambourines Lefima 2091-A and Kolberg 2030 DW. There are no further options for these instruments.

  • Play range: C4-F#6

04 Concert toms - Yamaha

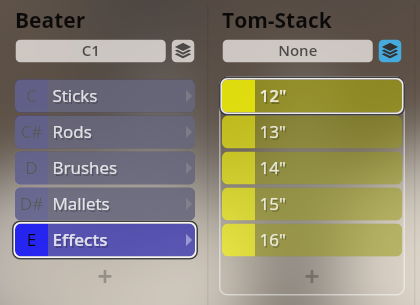

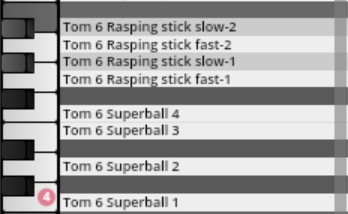

8 different low and high toms by Yamaha (9000 series, 6", 8", 10", 12", 13", 14", 15", 16") played with sticks, rods, brushes, mallets, and for special effects. The toms are each mapped to a dedicated octave, with the same articulations on the respective keys.

  • Mapping low/high toms:
    • C2-B2 tom 6/8
    • C3-B3 tom 5/7
    • C4-B4 tom 4/6
    • C5-B5 tom 3/5
    • C6-B6 tom 2/4
    • C7-B7 tom 1/3

Make sure to have Library Update 01 installed, which also includes newly added MIDI-loops.

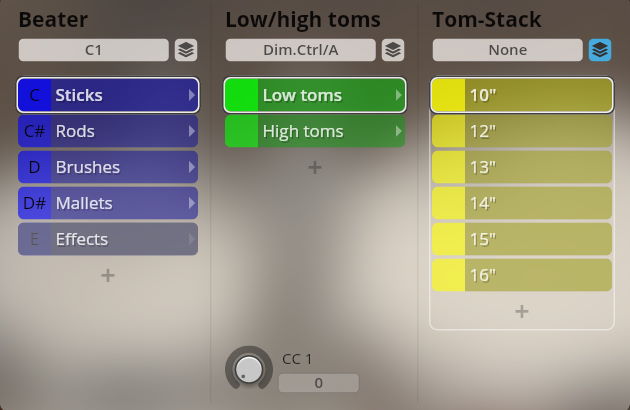

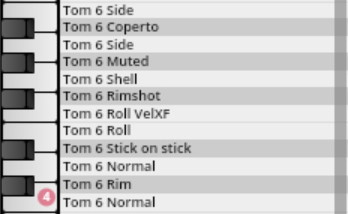

Sticks / rods / brushes / mallets

Use Dim.Ctrl/A (CC1) to change between low and high toms.

  • Play range: C2-B7

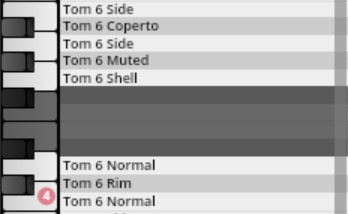

Rods / Brushes / Mallets


There are no further options to this slot.

  • Play range: C2-A#7

03 SY Cymbals - Gongs

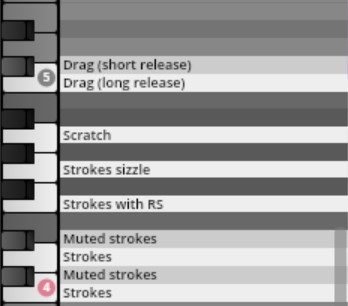

01 Piatti

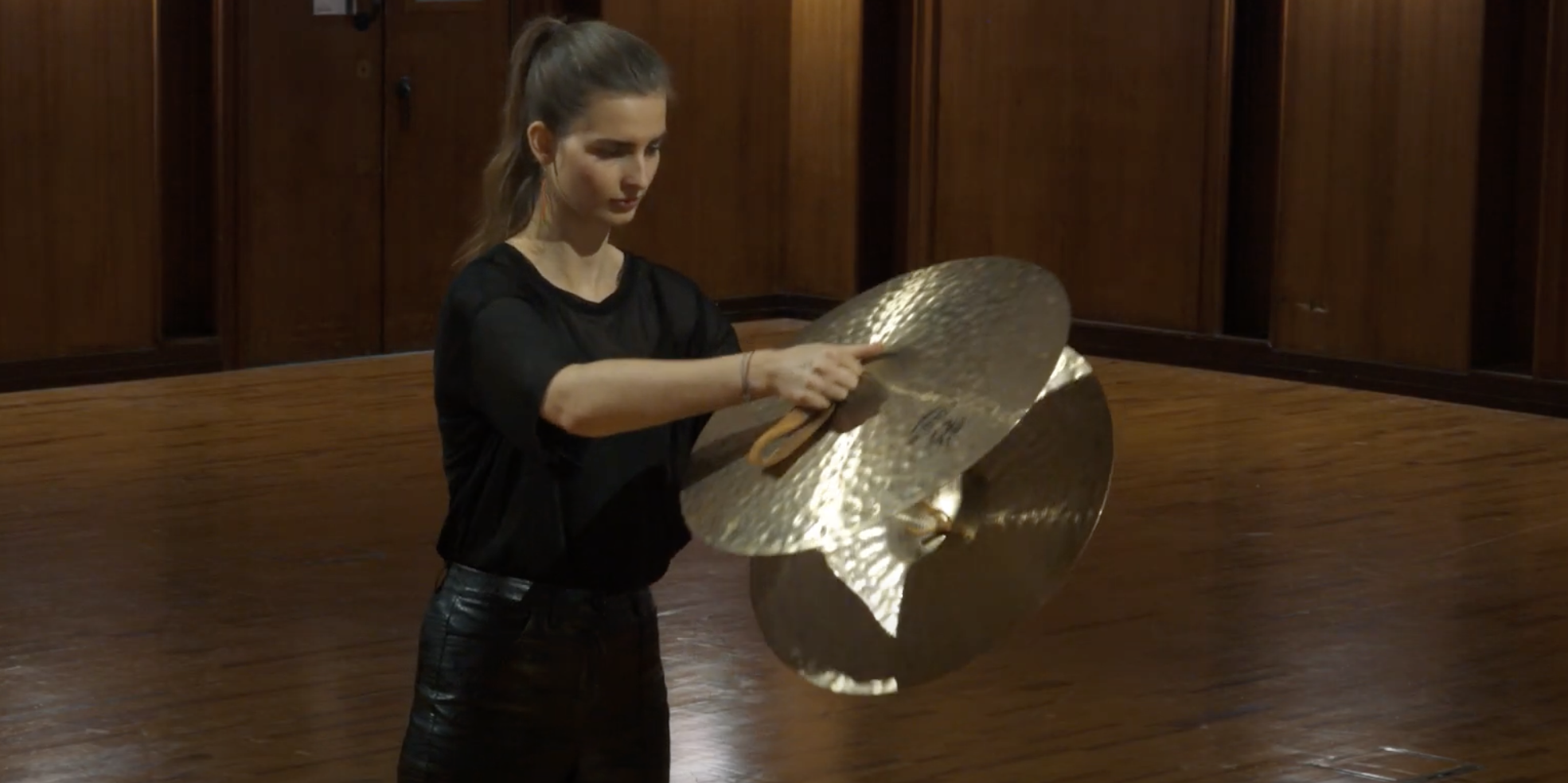

Two pairs of piatti, a 20'' Zildjian Concert and a 22'' Meinl Extra Heavy. There are no further options to the slots.

  • Play range: C4-C#5

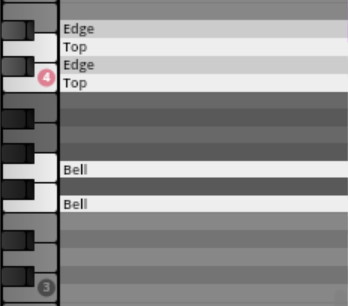

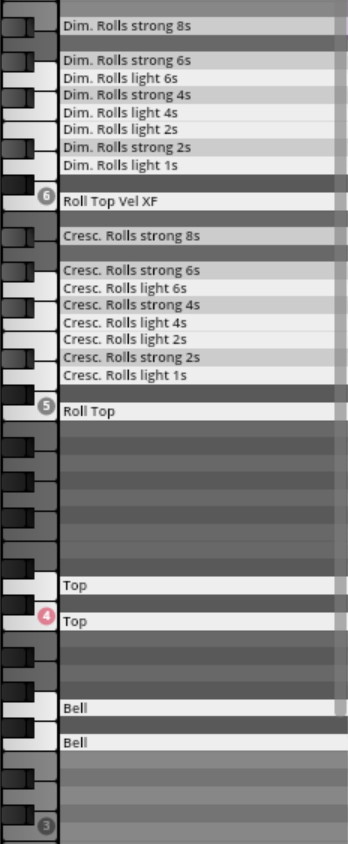

02 Cymbals

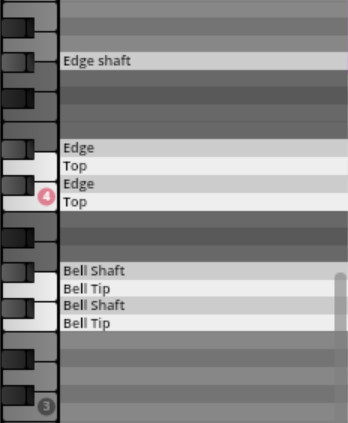

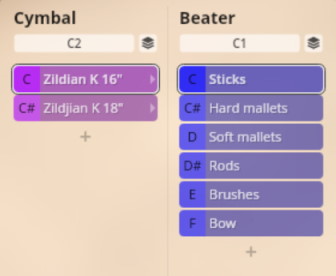

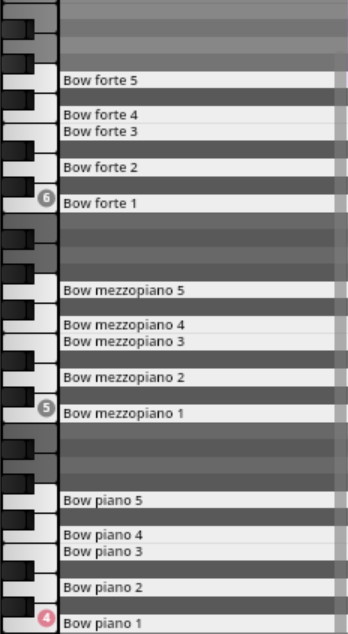

Zildjian K 16'' and 18'' suspended cymbals, played with sticks, hard and soft mallets, rods, brushes, and bowed.

  • Play range: F3-A#6

  • Play range: F3-A#6

  • Play range: F3-G#4

  • Play range: F3-D#4

  • Play range: C4-G6 (white keys only)

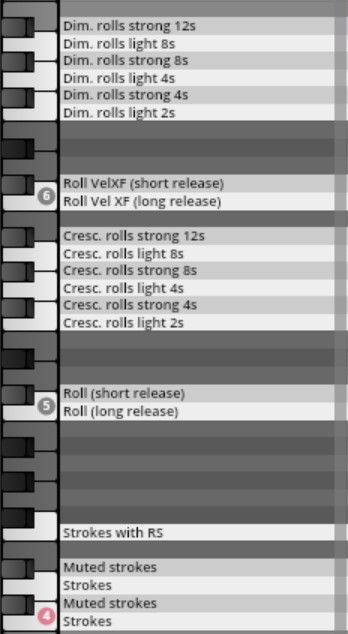

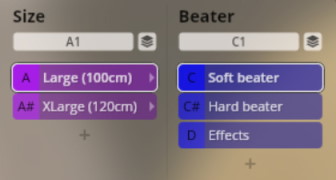

03 Tam-tam

A large Kolberg 100 cm tam-tam and an extra large one with 120 cm diameter, played with soft and hard beaters, and for special effects.

Beaters soft / hard
  • Play range: C4-A#6

  • Play range: C2-D#6

04 SY Mallets

01 Celesta - Kolberg

Celesta Kolberg. The instrument is mapped one octave lower than it sounds. The "light" version of the single notes has no release samples and uses much less RAM than the full one.

  • Play range: C2-F7

  • Play range: C3-G#5

02 Glockenspiel - Yamaha

Glockenspiel Yamaha 2500. Played with metal and plastic beaters, and bowed.
The instrument is mapped one octave lower than it sounds.

  • Play range: C4-E7

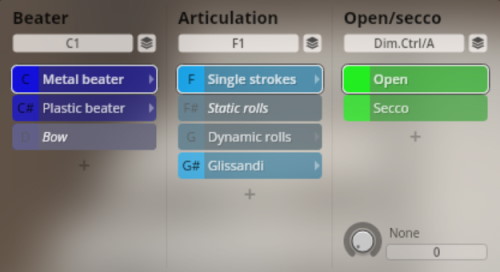

Metal / plastic beaters

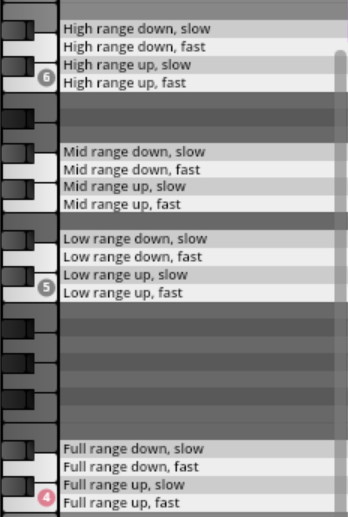

Single strokes / glissandi

Use Dim.Ctrl/A (CC1) to switch between open and secco articulations.

  • Play range: C4-D#6

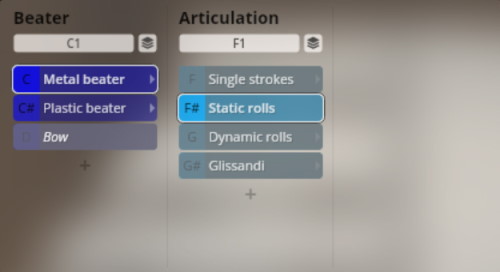

Static rolls

There are no further options to this articulation.

Dynamic rolls

Use Dim.Ctrl/A (CC1) to switch durations to 0.5/1/3 seconds.


There are no further options to this articulation.

03 Xylophone - Adams

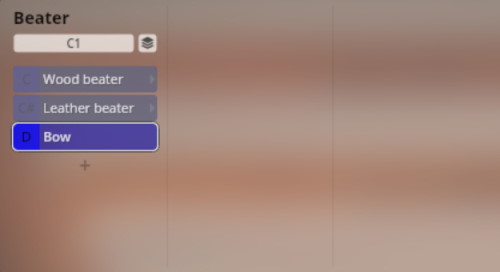

Xylophone Adams Artist Alpha. Played with wooden and leather beaters, and bowed.

  • Play range: C4-C8

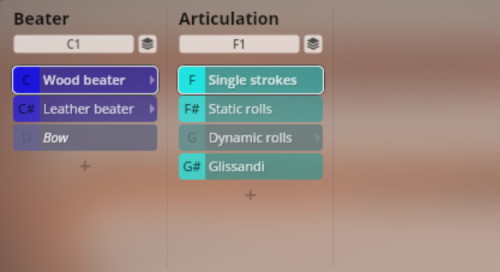

Wood / leather beaters

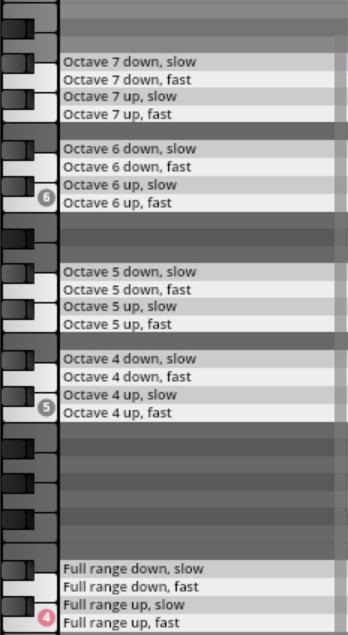

Single strokes / static rolls / glissandi

  • Play range: C4-G#6

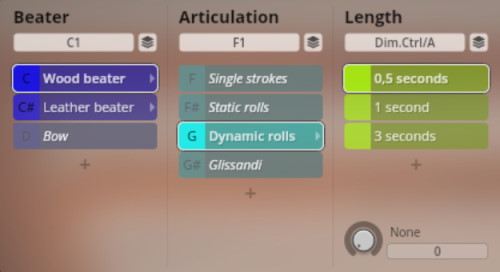

Dynamic rolls

Use Dim.Ctrl/A (CC1) to switch durations to 0.5/1/3 seconds.


There are no further options to this articulation.

05 SY Bells

01 Tubular bells - Bergerault

Tubular bells Bergerault C25 Symphonic, played with medium and hard hammers, a triangle beater, and glissandos with sticks, rods, and brushes.

  • Play range: F3-F5

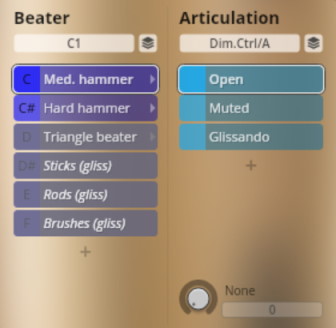

Medium and hard hammers. Use Dim.Ctrl/A (CC1) to switch between open, muted, and glissando articulations.

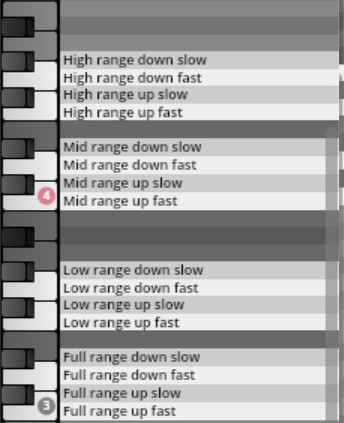

Glissandi hammers
  • Play range: C3-G#4

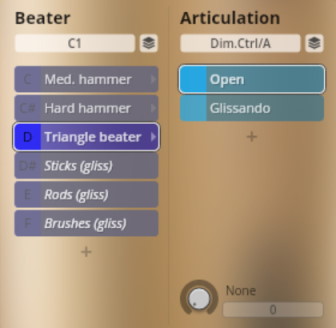

Triangle beater

Use Dim.Ctrl/A (CC1) to switch between open articulations and glissandos.

  • Play range: C3-G4 (white keys only)

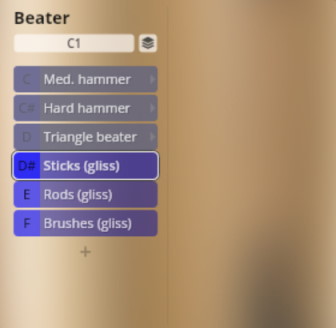

Sticks / rods / brushes

There are no further options for these slots.

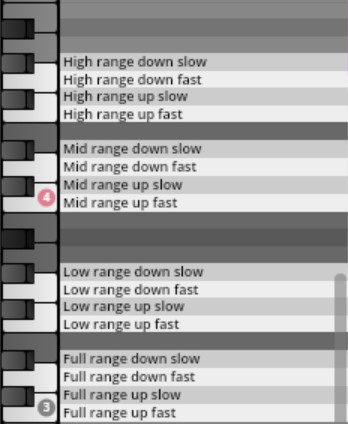

Glissandi sticks / rods
  • Play range: C3-G#4

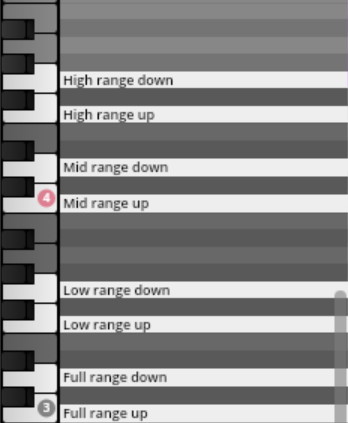

Glissandi brushes
  • Play range: C3-G4 (white keys only)

SY Percussion

01 Triangles

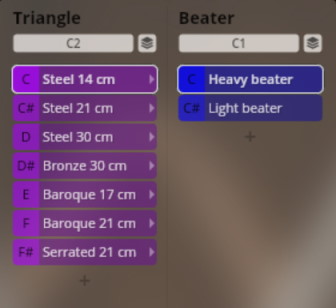

Triangles Kolberg: Steel 14, 21, 30; Bronze 30; Bronze Baroque 17, 21; Steel serrated 21. Played with heavy and light beaters. Use C1/C#1 to change beaters.

  • Play range: C4-G6

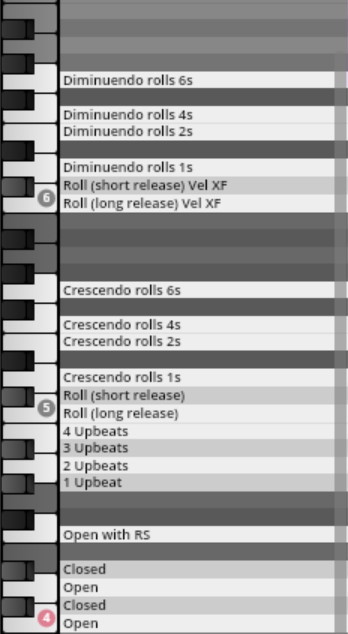

Triangles normal

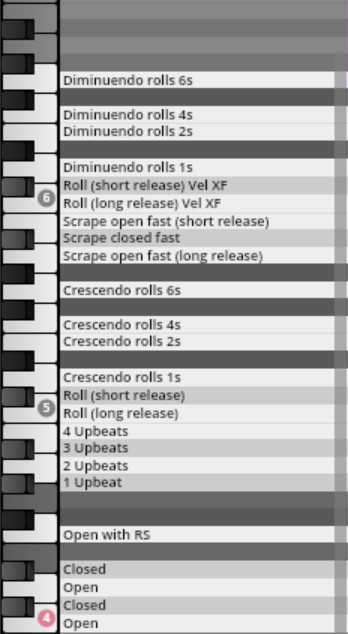

Triangle serrated

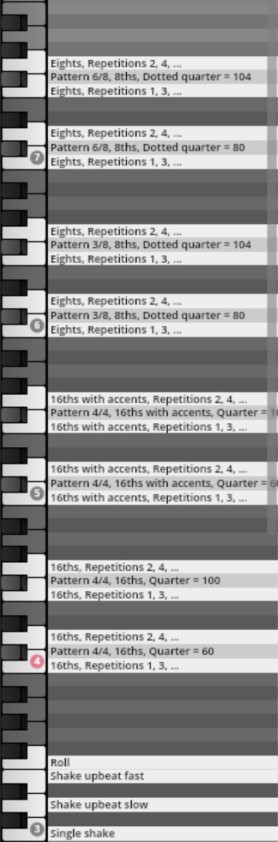

02 Shakers

Shakers Kolberg medium tube and egg-shaped. Use Dim.Ctrl/A (CC1) to switch between shakers. There are no further options for these slots.

  • Play range: C3-G7

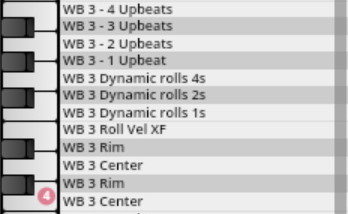

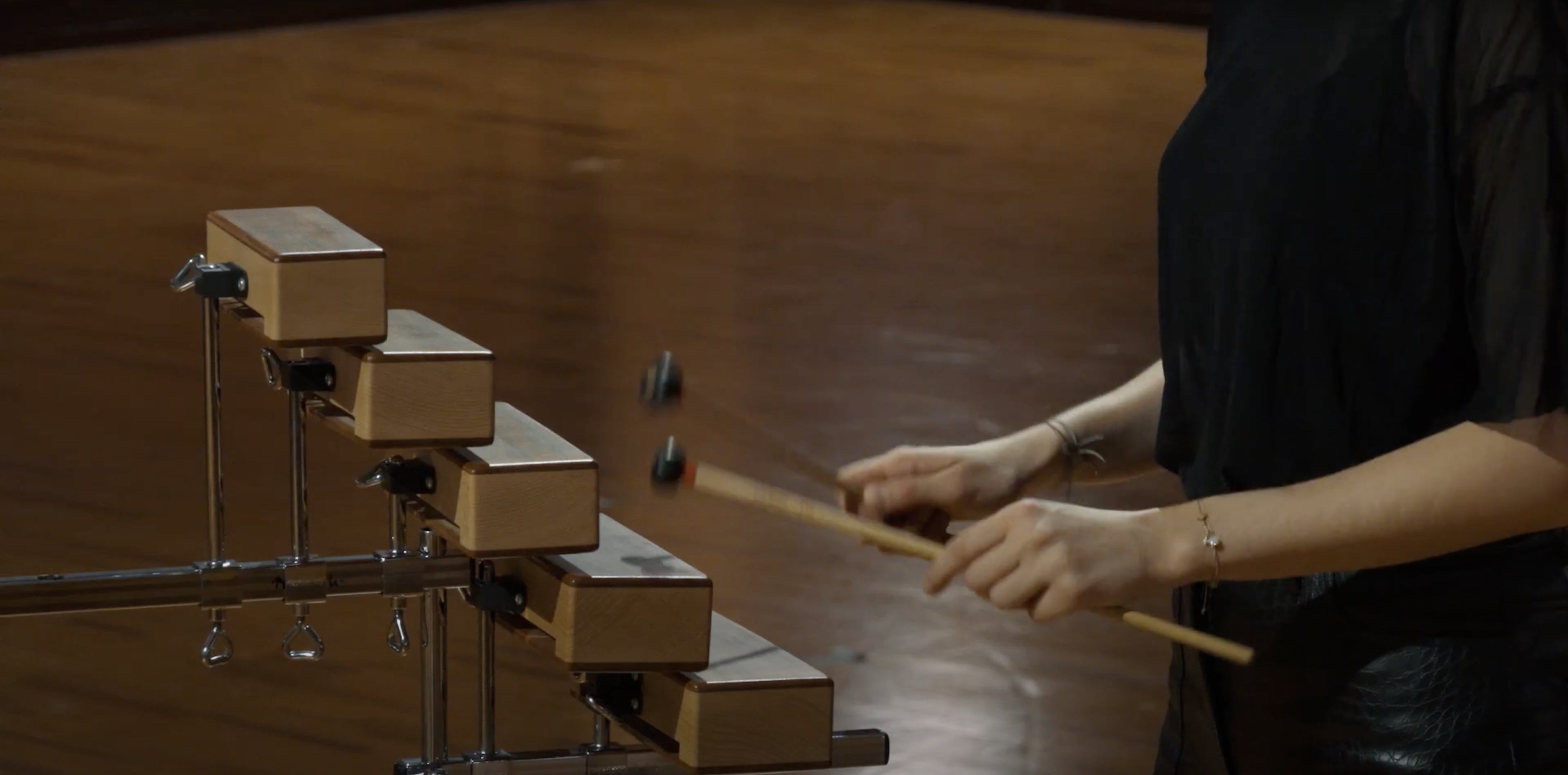

03 Woodblocks

A set of 5 Kolberg woodblocks. Played with yarn and plastic mallets, and with a rasping stick. Each woodblock is mapped to an octave, with identical articulations on the same keys. There are no further options for these slots.

Yarn / Plastic mallets
  • Play range: C2-B6

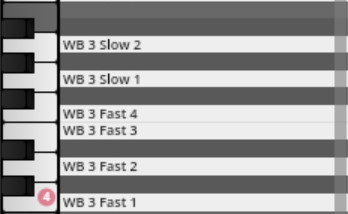

Rasping stick
  • Play range: C2-A6 (white keys only)

04 Castanets

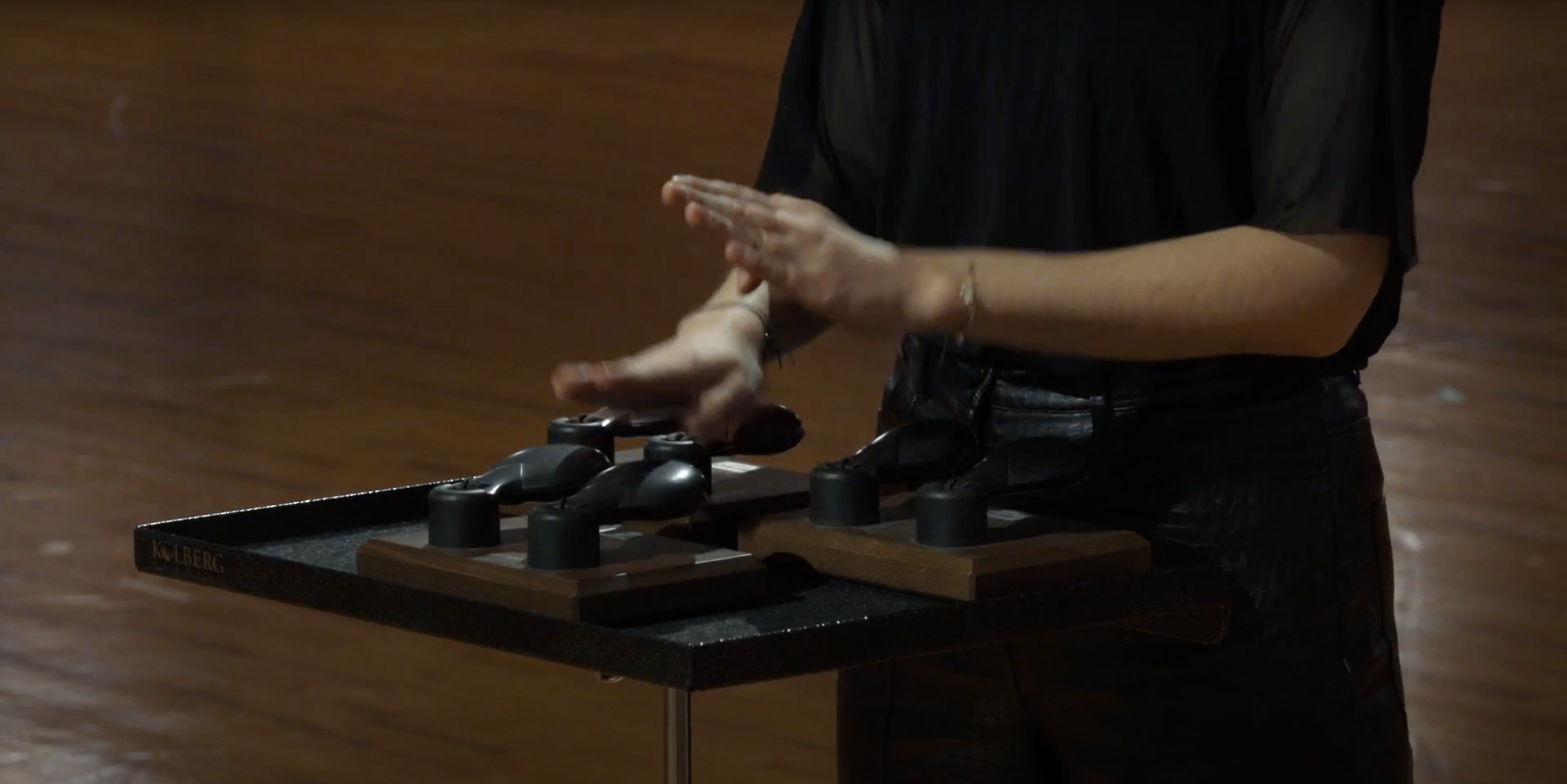

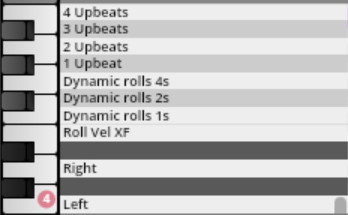

Two pairs of Kolberg castanets (large and small). There are no further options for these slots.

  • Play range: C4-B4
